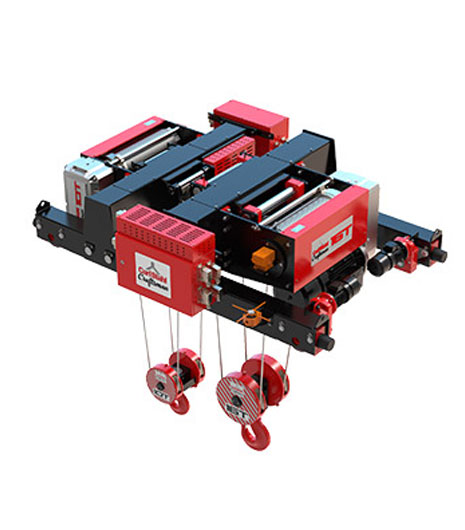

DUAL CRAB HOIST
Technical Advantages
- Design: Two independent hoists are mounted in common frame.
- Working Group: Standard with M5 duty.
- Lifting Speed: Frequency inverters for lifting and cross travel movements.
Standerd Specification
| Capacity | 10000/5000 , 16000/7500 , 16000/10000 |
| Classification | Fem 2m , 3m , 4m |
| Lifting Speed (m/min) | 1~4, 1.2~4.7, 1.25~5, 2.5~10… ; Frequency Controlled |
| Travel Speed (m/min) | 5~20; Freqency Controlled |
| Power Supply | 415Volts, 3 Phase, 50 Hz, AC Supply |
| Control Supply | 24 Volts, 50 Hz, DC Supply Frequency Controlled |
| Ambient Temp. (°C) | 50°C Max |
| Application | Indoor |
| Thermal Insulation Class | F-Class |
| Motor Enclosure | IP 54 |
| Brake Type | Electromagnetic Disc Brake – AC |
| Hook | DIN 15400 |
| Rope Drum | Seamless pipe rope drum grooved as per DIN 15061 |
Dual Crab Hoist
| Model | Working Load (Tons) | Track Gauge (mm) | Lift Height (m) | Reeving | Speed (m/mm) | fem |
| CLHD 10/5 | 10T | 1250 | 6, 8, 12 | 4/1 | 1.2~4.7 | 2M |
| 1400 | ||||||
| 1800 | ||||||
| CLHD 16/7.5 | 16T | |||||
| 1400 | ||||||
| 1800 | ||||||
| CLHD 16/10 | 16T | 1400 | ||||
| 1800 |
